Description

Basic Info

Model NO.	customized zirconia fiber
Usage	Aerospace, Ceramic Production, Chemical Industry, Environmental Protection Equipment, Glass Manufacturing, Industrial Kilns, Petroleum Refining, Steel Smelting
Appearance	White, Rigid, Smooth Surface, No Damage
Crystalline Phase	Cubic Zro2
Transport Package	Pallet
Trademark	None
Shape	Customized
Zirconium Content	30%
Recommended Maximum Service Temperature	1800-2200
Permanent Linear Change (1600℃ × 2h, %)	0.1-0.5
Specification	Custom
Origin	China

Product Description

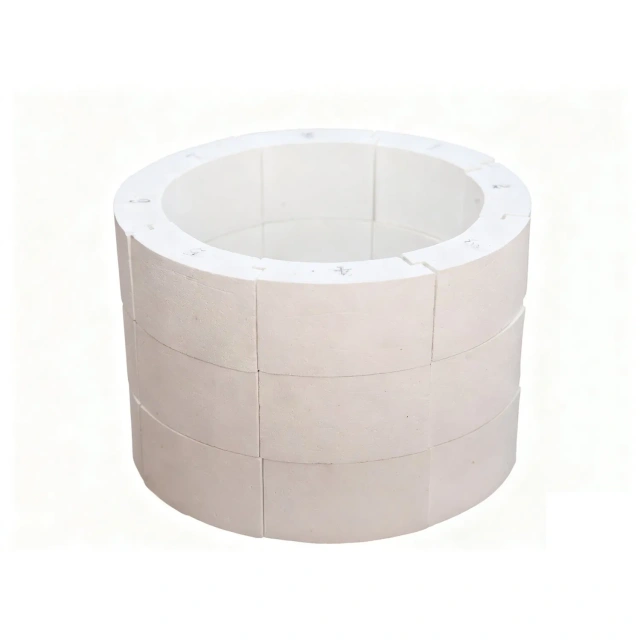

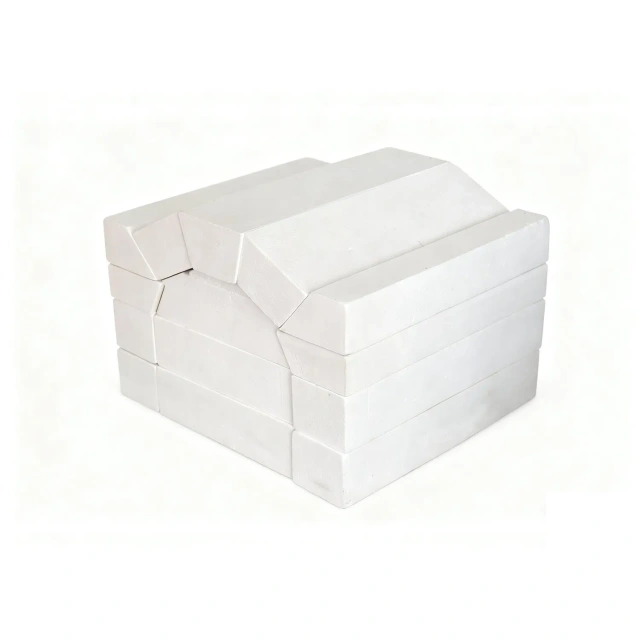

Zirconia Fiber refers to a polycrystalline fibrous material with a purity (ZrO2+ stabilizer) ≥ 99.99%, a fully stabilized cubic crystal phase, a diameter of 3–8 μm, in the form of continuous filaments, and exhibiting a white cotton-like appearance. Zirconia fiber products are various profiled components manufactured through deep processing and calcination of zirconia fibers.
These products feature unique process design, high purity, low density, high melting point (2700°C), high service temperature (2200°C), low thermal conductivity at room temperature (0.06 W/m·K), corrosion resistance, high-temperature stability, non-volatility, pollution-free composition, long service life, and environmental friendliness.
As the highest-temperature-resistant ultra-high-temperature refractory insulation material among known metal oxides, it is widely used in aviation, aerospace, sapphire growth furnaces, monocrystal growth furnaces, high-temperature electric furnaces, high-process microwave electric furnaces, military applications, and other high-tech fields.

Application

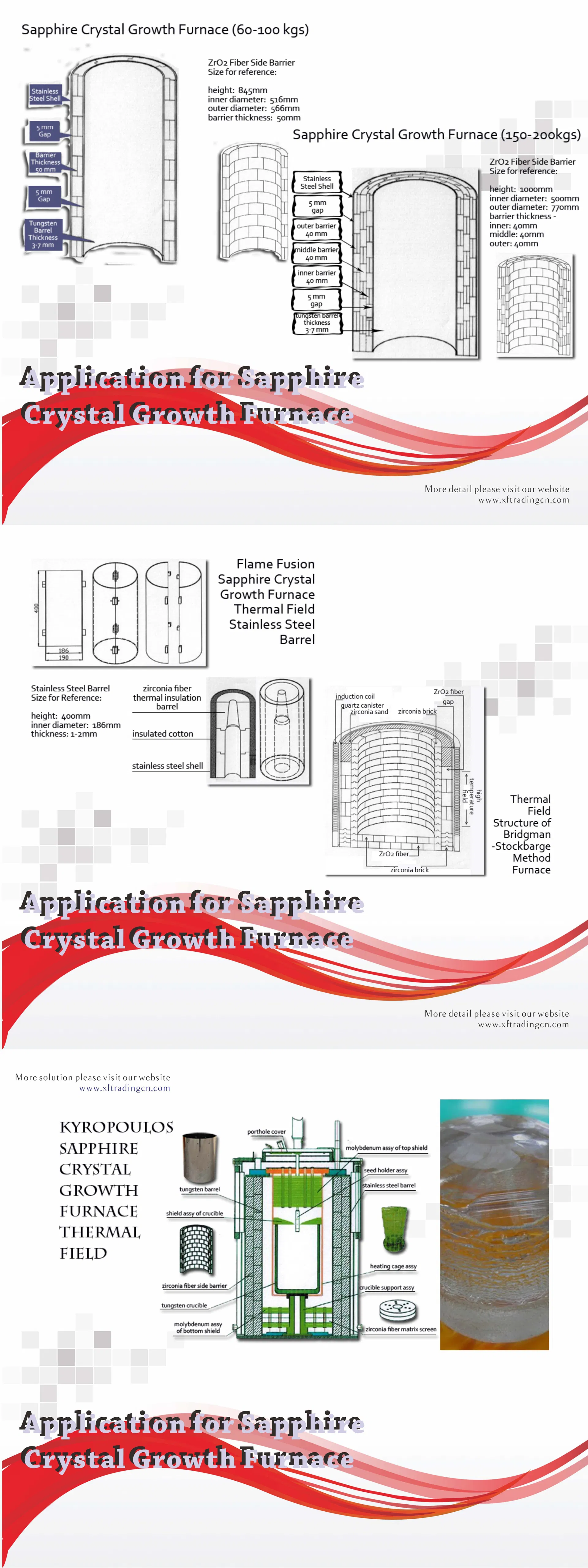

Zirconia Fiber Products as Thermal Insulation Material for 2200°C Thermal Fields in Gemstone Single Crystal Growth
Replacing traditional reflective tungsten/molybdenum heat shields, zirconia fiber products deliver comprehensive superior effects:

Energy savings of 30% or more

Improved product quality and yield rate

Shortened growth cycle (by 2–4 days)

Simplified crystal growth process for easier production scaling

Extended service life of tungsten heating cages

Shortened growth cycle (by 2–4 days)

Easier retrofitting of existing growth furnaces for larger crystal production

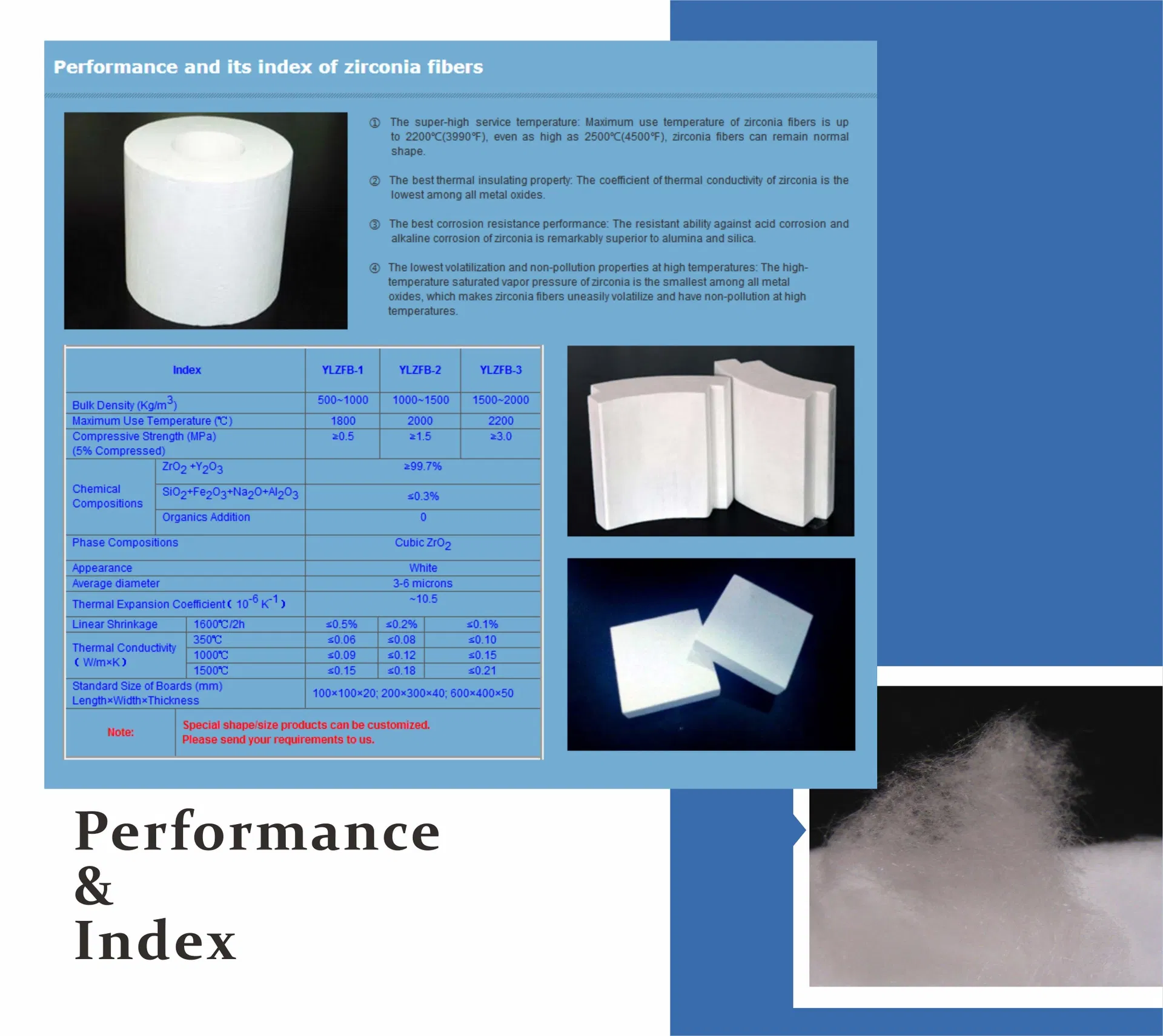

Specification

Property / Type		YL-YZB-1	YL-YZB-2	YL-YZB-3
Bulk Density (kg/m³)		750 ± 250	1250 ± 250	1750 ± 250
Compressive Strength (at 5% deformation, MPa)		0.50	1.00	2.00
Permanent Linear Change (1600°C × 2h, %)		0.50	0.20	0.10
Thermal Conductivity (Hot Face 1000°C, W/m·K)		0.08	0.11	0.15
Crystalline Phase		Cubic ZrO₂
Appearance		White, rigid, smooth surface, no damage
Recommended Maximum Service Temperature (°C)		1800.00	2000.00	2200.00

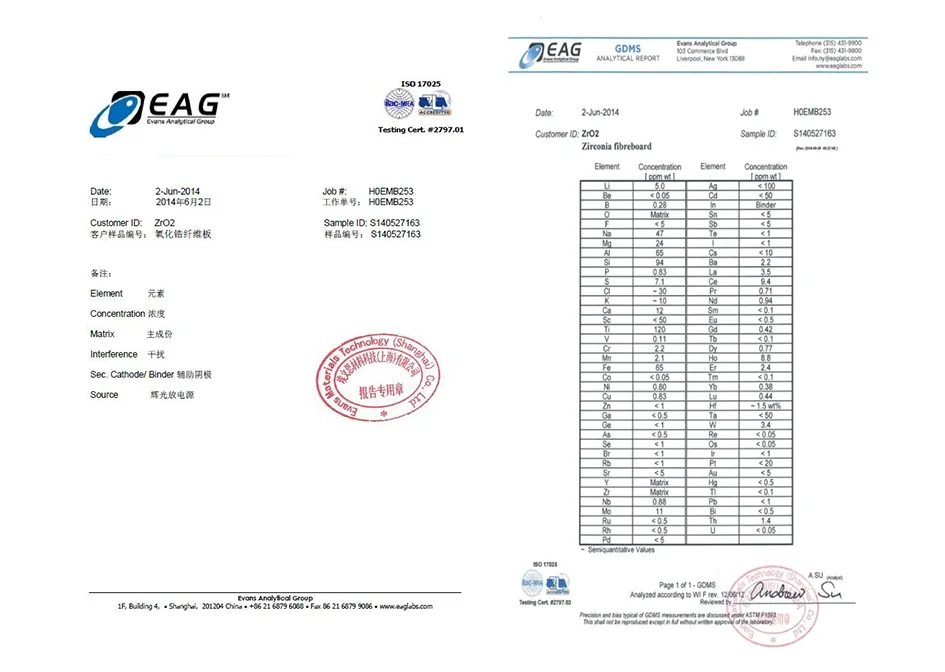

Chemical Composition (wt%)	ZrO₂+Y₂O₃ (Stabilizer)	≥ 99.99
	Y₂O₃	15.37 ± 1.59
	SiO₂	≤ 0.16
	Na₂O	≤ 0.04
	Fe₂O₃	≤ 0.01

Comparison of the properties of zirconia fibres with other inorganic fibres
Type	Melting point	Maximum operating temperature
Zirconia fibres	~2700℃	2500℃
Aluminium oxide fibres	~2000℃	1600℃
mullite fibre	~1840℃	1500℃
Aluminium silicate fibre	~1750℃	1350℃
quartz fibre	~1710℃	1300℃
glass fibre	800~950℃	800℃

About Our Products

Zirconia fiber serves as an ultra-high-temperature insulation material and is used in crystal growth furnaces, combustion furnaces exceeding 1800°C, resistance furnaces, and other high-temperature equipment for processes such as crystal growth, ceramic firing, metal melting, petroleum cracking, and other heat treatment applications and scientific research activities. Its advantages extend beyond excellent thermal insulation properties to also facilitating rapid heating and cooling of equipment.

In aerospace, military, and nuclear energy sectors, zirconia fiber can be employed as an ultra-high-temperature insulation material, barrier material, ablative material, and satellite battery separator material.

In the aerospace and aviation industries, zirconia fiber can be used as a reinforcement material in metal matrix and ceramic matrix composites. It demonstrates unique advantages particularly in composites serving heat insulation and isolation functions.

Zirconia fiber can also be utilized as high-temperature filtration material and catalyst support for high-temperature reactions.

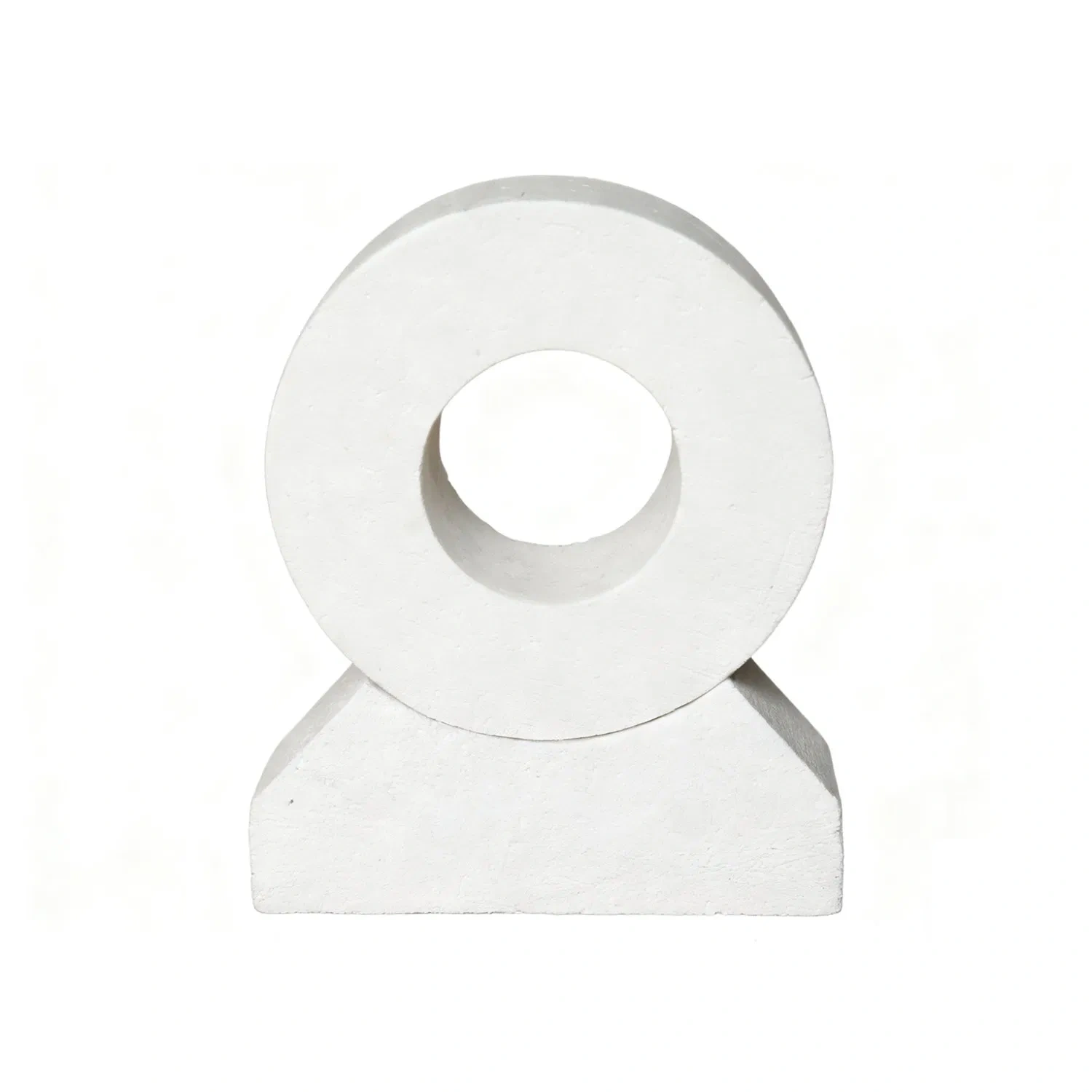

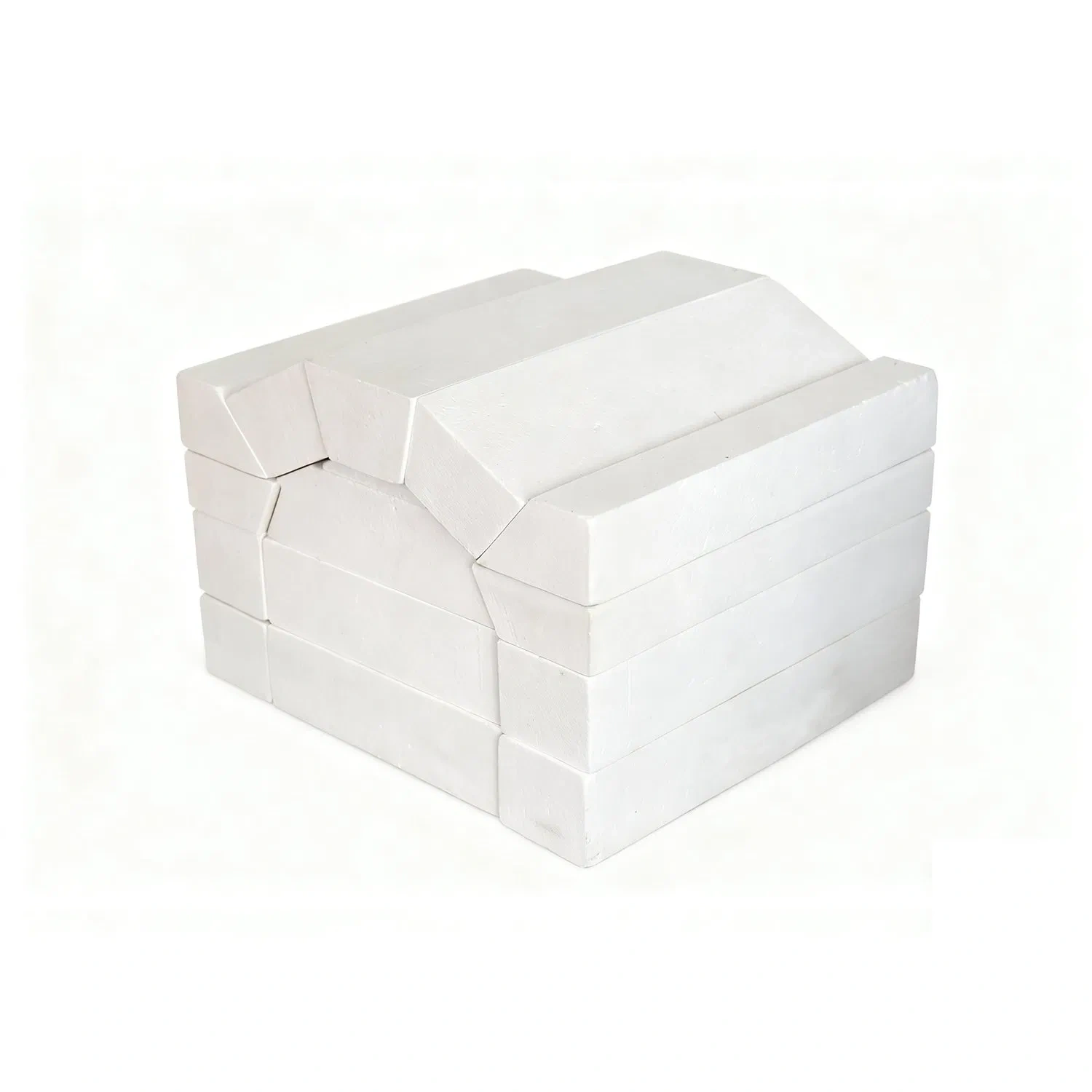

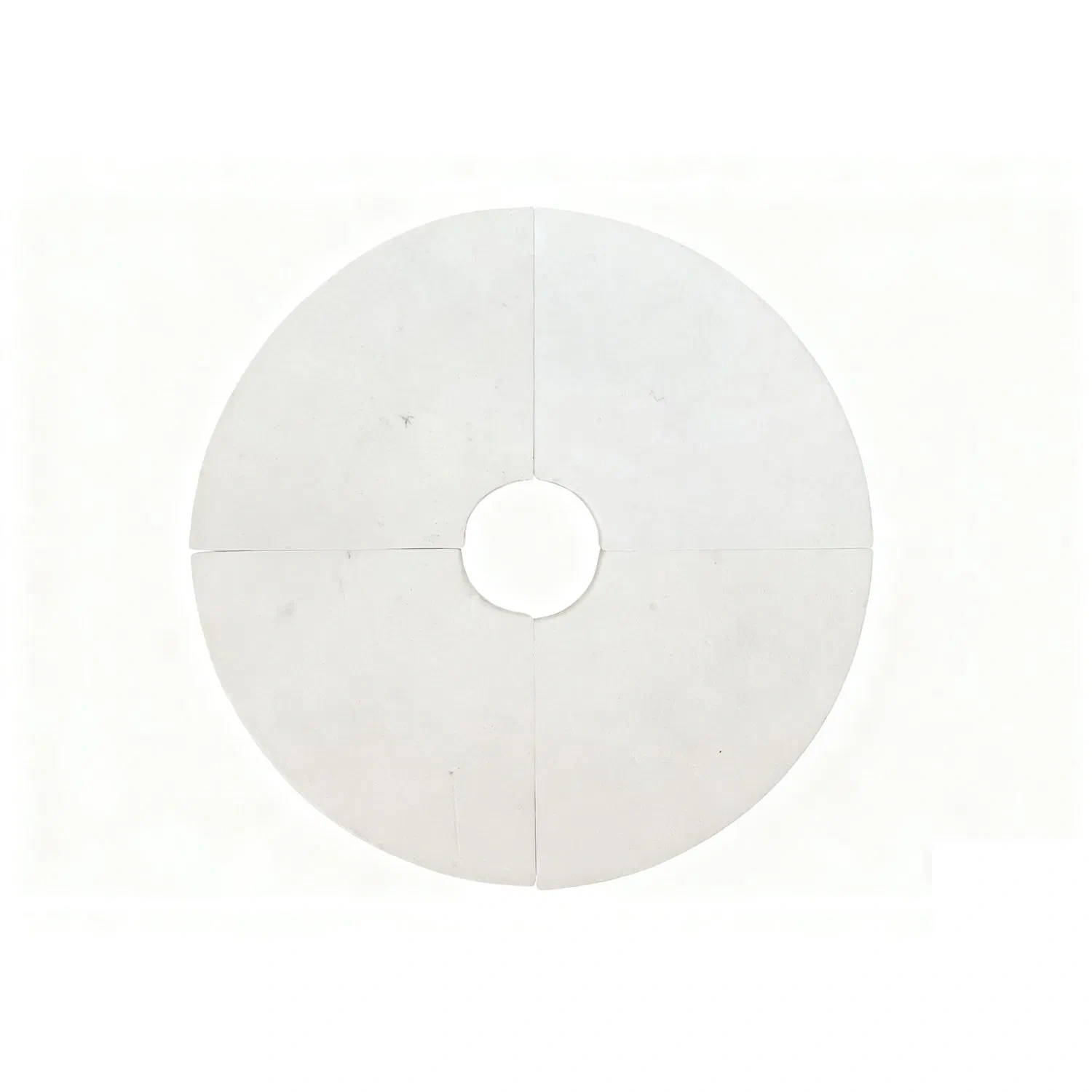

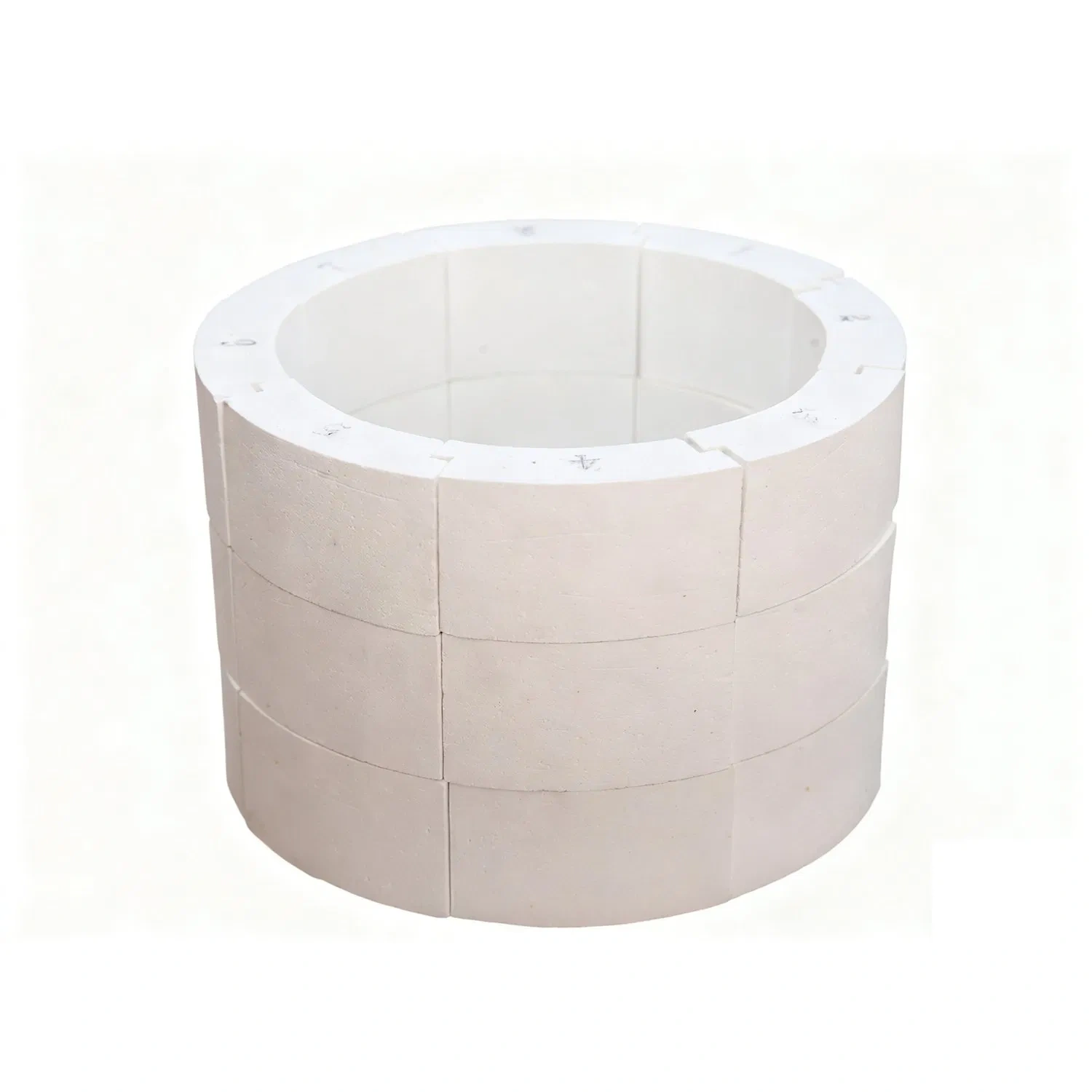

Fiber Zirconia Felt for High Temperature Filtration Gas Cleaning Catalyst Carrier Customized
