Industrial Furnace Lining Refractory Ceramic Board with Excellent Na2o Corrosion Resistance

GET A QUOTE

$Industrial Furnace Lining Refractory Ceramic Board with Excellent Na2o Corrosion Resistance,MY SHOP,Industrial Furnace Lining Refractory Ceramic Board with Excellent Na2o Corrosion Resistance$
$Industrial Furnace Lining Refractory Ceramic Board with Excellent Na2o Corrosion Resistance,MY SHOP,Industrial Furnace Lining Refractory Ceramic Board with Excellent Na2o Corrosion Resistance$
$Industrial Furnace Lining Refractory Ceramic Board with Excellent Na2o Corrosion Resistance,MY SHOP,Industrial Furnace Lining Refractory Ceramic Board with Excellent Na2o Corrosion Resistance$
$Industrial Furnace Lining Refractory Ceramic Board with Excellent Na2o Corrosion Resistance,MY SHOP,Industrial Furnace Lining Refractory Ceramic Board with Excellent Na2o Corrosion Resistance$
$Industrial Furnace Lining Refractory Ceramic Board with Excellent Na2o Corrosion Resistance,MY SHOP,Industrial Furnace Lining Refractory Ceramic Board with Excellent Na2o Corrosion Resistance$
$Industrial Furnace Lining Refractory Ceramic Board with Excellent Na2o Corrosion Resistance,MY SHOP,Industrial Furnace Lining Refractory Ceramic Board with Excellent Na2o Corrosion Resistance$

Description

Basic Info

Model NO.	HT1800
Usage	Aerospace, Ceramic Industry, Energy Industry, Glass Industry, Non-Metallic Mineral Processing Industry, Scientific Research and Experiments, Steel Industry
Volume Density	0.4~0.6g/Cm³
Long-Term Use Temperature	1750℃
Transport Package	Carton/Wooden Case
Trademark	None
Shape	Board
Crystalline Phase	Corundum/Mullite
Maximum Use Temperature	1800℃
Permanent Linear Change on Heating	≤±0.5%(1750℃*3h)
Specification	1000mm600mm60/70/80mm
Origin	China

Product Description

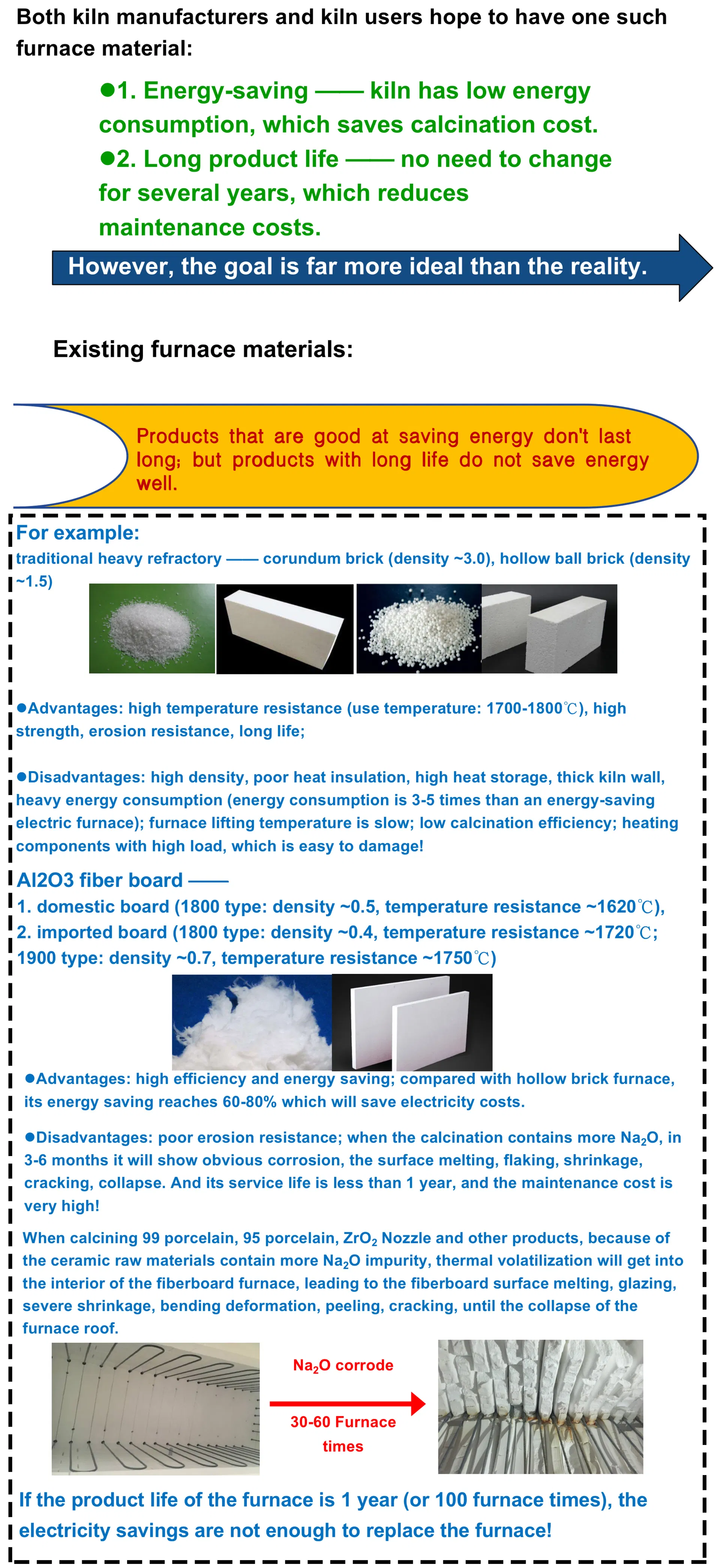

The 1800 type foam ceramic new material board is a new type of lightweight energy-saving foam ceramic heat-resistant insulation material, which has been independently developed and produced by the thermal technology for 4 years. Its main purpose is to serve as furnace materials for all kinds of high-temperature industrial furnaces and experimental electric furnaces, as well as thermal insulation materials in the aerospace field. The purpose of product development and launch is mainly to replace alumina fiberboard with poor corrosion resistance and short service life, as well as heavy corundum brick and hollow ball brick with serious energy consumption.

1800 type foam ceramic new material big board standard size:

1020*120*80mm;1020*120*75mm;

960*120*70mm;960*120*60mm;

960*120*50mm;1000*185*80mm;

1000*200*80mm;600*300*80mm.

Note: the production cycle of the large board is long and needs to be customized in advance.

About Our Products

High-temperature resistance – the maximum temperature resistance is 1800 ℃, the long-term temperature resistance is 1750 ℃, and the high-temperature resistance is better than that of imported alumina fiberboard.

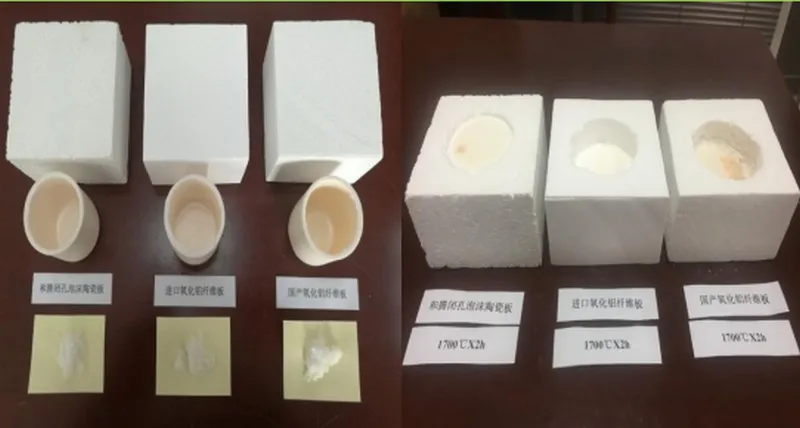

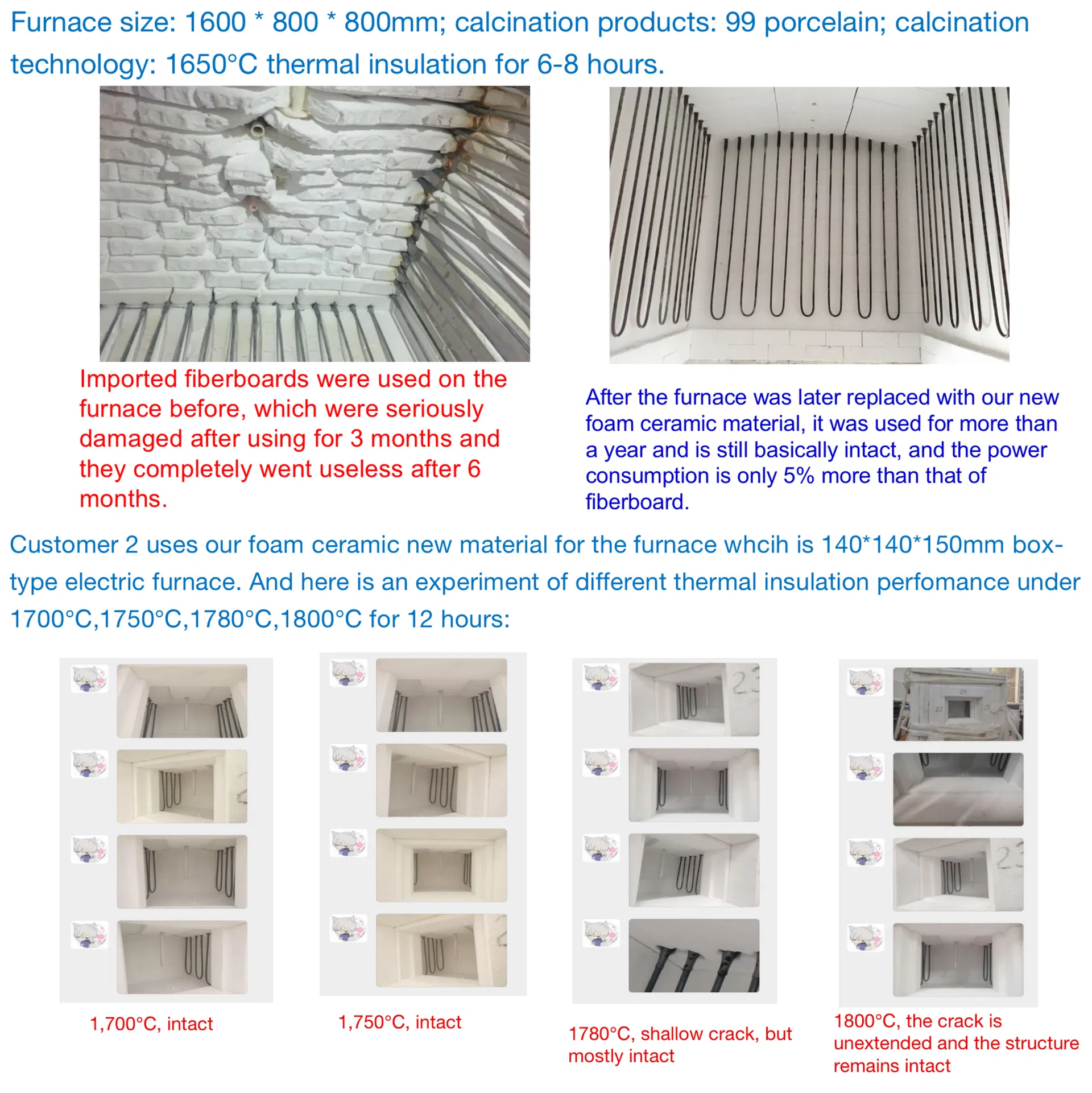

Corrosion resistance and long service life – the corrosion resistance of acid and alkali is better than that of alumina fiberboard, and the service life of a furnace is 2-3 times or even longer than that of alumina fiberboard.

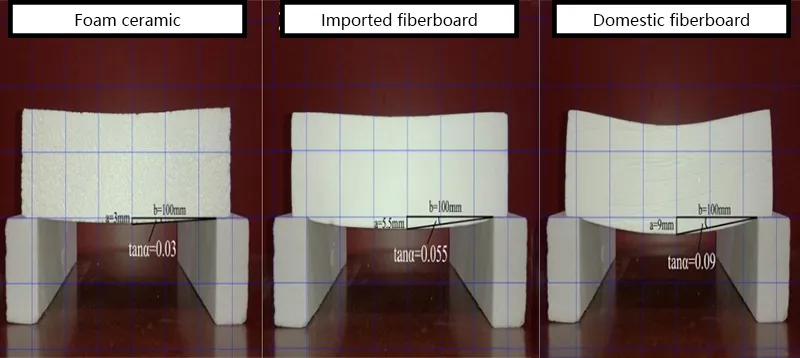

High strength – the strength is significantly better than that of fiberboard, the surface hardness is high, and there is no slag after one furnace of air burning;

Light energy-saving – low density (0.4 ~ 0.6g / cm3), less heat storage, energy-saving effect is close to that of light fiberboard, and energy-saving is 50-80% higher than that of fire-resistant brick.

Good thermal insulation effect – the structure contains a large number of micro-Nano closed pores, static air thermal insulation, low thermal conductivity (about 0.24w / m • K on the hot surface at 800 ℃). Although the thermal insulation effect is slightly inferior to that of fiberboard, it is significantly better than that of hollow ball brick.

Good thermal shock resistance – it can meet the demand of rapid temperature rise and fall of the kiln, and even open the furnace at high temperature.

High purity – white color, pure, fewer impurities, no pollution to claimed products;

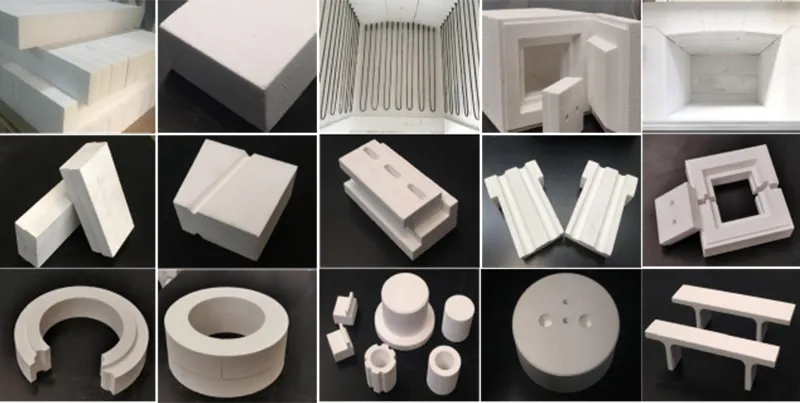

Convenient processing – easy milling, cutting, and opening, convenient processing and simple installation;

Meet a variety of atmosphere applications – it can be used in an air atmosphere, hydrogen atmosphere, a nitrogen atmosphere, argon atmosphere, and vacuum.

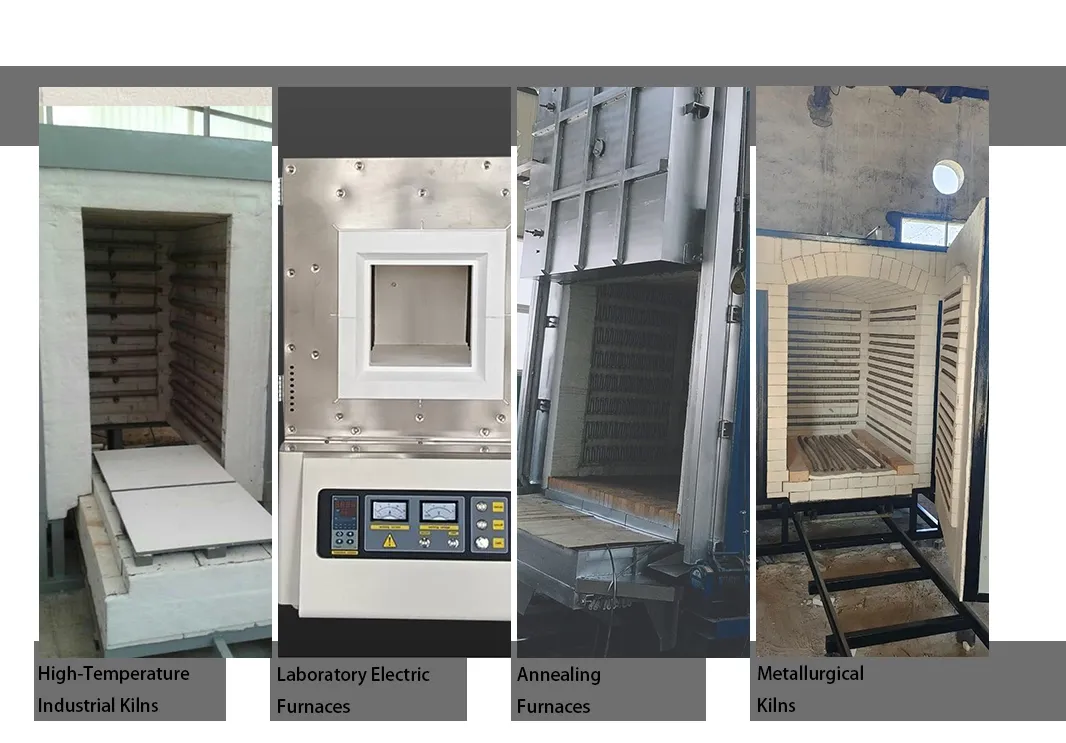

Application

Specification

Product name	HT1800 Type Foam Ceramic Thermal Insulation Material
Crystalline phase	Corundum/Mullite
Volume Density	0.4~0.6g/cm³
Maximum use temperature	1800℃
Long-term use temperature	1750℃
Permanent linear change on heating	≤±0.5%(1750℃*3h)
Heat conductivity coefficient (thermal surface:800℃)	~0.24W/m·K
Resistant strength at room temperature	~5MPa
other	Easy to process,do not drop slag,anti-heat shock
